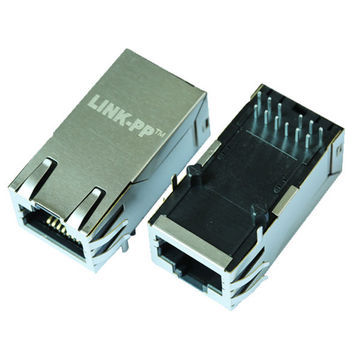

LPJK6064CNL 100% Cross Pulse JXK0-0161NL from China manufacturer

Product Detail

Model No.: JXK0-0161NL LPJK6064CNL-#23...

Packing: tray,reel

UL: SGS

Production Capacity: 5000,000

Delivery Date: 5-10days

Female Gender and RJ45 RJ45 Coupler Splitter RJ45 Connector

Female Gender and RJ45 Coupler Splitter Connector LPJK6064CNL 100% Cross Pulse JXK0-0161NL
LINK-PP Part Number	LPJK6064CNL
Pulse Part Number	JXK0-0161NL
Application-Lan	ETHERNET(PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	8
Diodes	NO DIODES
LED Option	WITHOUT LEDS
Latch	TAB UP
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	0.531
Package Height (mm)	13.50
Package Length (Inches)	1.299
Package Length (mm)	33.02
Package Width (Inches)	0.653
Package Width (mm)	16.60
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDEREXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	1000 Base-T
Temperature	-40 TO +85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT
LINK-PP cross other Pulse parts for reference
LINK-PP cross other Pulse parts for reference
LINK-PP Part Number	Pulse Part Number
LPJ1012AGNL	J1011F01P
LPJ1026AGNL	J1026F21CNL
LPJ0151GDNL	SK02-111008VNL
LPJ0165ABNL	J00-0086NL
